1725直流散热风扇

产品详情

185.0-226.0CFM 172×150×51mm DC Axial Flow Fan

★General Specification(一般规格)

☆Material:

  Frame And Lmpeller:Thermal Plastic UL 94V-0

☆Insulation Resistance:10MΩ Or Over With a

                                     DC250V Megger

☆Dielectric Withstand Voltage:AC500V 1S

☆Allowable Ambient Temperature Range:

  -10℃~+70℃(Operation)

  -40℃~+70℃(Storage)

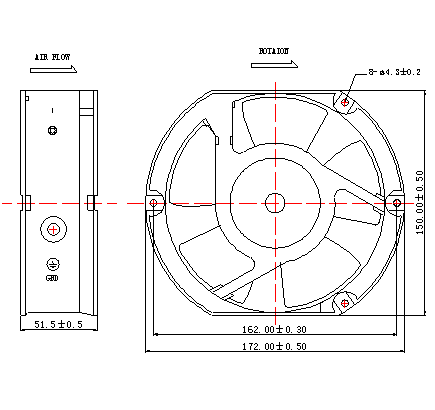

★Dimensions Drawing(外观图)

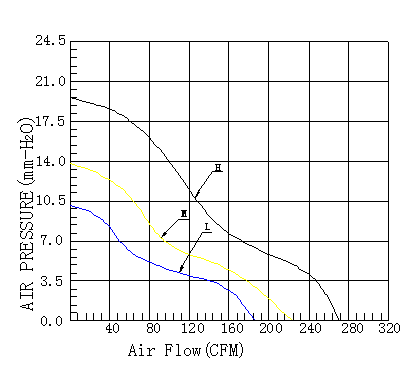

★Characteristic Curves(特性曲线)


★Specifications(规格参数)

Model

型号

Bearing

System

轴承

Rated

Voltage

(V)

电压

Operation

Voltage

(V)

电压范围

Current

(A)

电流

Input

Power

(W)

功率

Speed

(RPM)

转速

Airflow

(CFM)

风量

Static

Pressure

(mm-H2O)

静压

Niose

Level

(dB-A)

噪音

Weight

重量

MD17251D2H-S
Ball
24
21.6~26.4
1.00
24.0
3600
266
19.48
67.00
760
MD17251D2M-S
0.60
14.4
3000
222
13.54
55.80
760
MD17251D2L-S
0.40
9.6
2500
185
9.40
46.50
760
MD17251D4H-S

Ball

48
43.2~52.8
0.60
28.8
3600
266
19.48
67.00
760
MD17251D4M-S
0.35
16.8
3000
222
13.54
55.80
760
MD17251D4L-S
0.25
12.0
2500
185
9.40
46.50
760

风扇端子
