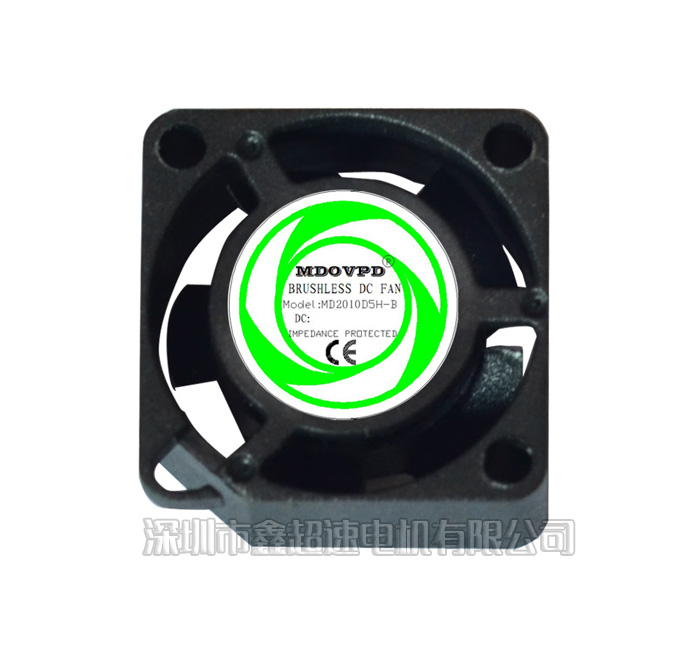

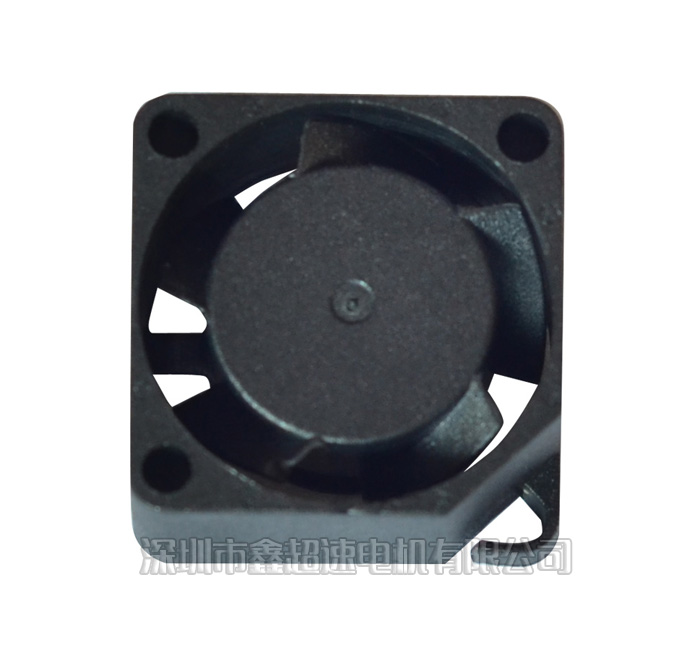

2010微型散热风扇

产品详情

0.75-1.80CFM    20×20×10mm    DC Axial Flow Fan

★General Specification(一般规格)

☆Material:

  Frame And Lmpeller:Thermal Plastic UL 94V-0

☆Insulation Resistance:10MΩ Or Over With a

                                     DC250V Megger

☆Dielectric Withstand Voltage:AC500V 1S

☆Allowable Ambient Temperature Range:

  -10℃~+70℃(Operation)

  -40℃~+70℃(Storage)





★Dimensions Drawing(外观图)
★Characteristic Curves(特性曲线)


★Specifications(规格参数)

Model

型号

Bearing

System

轴承

Rated

Voltage

(V)

电压

Operation

Voltage

(V)

电压范围

Current

(A)

电流

Input

Power

(W)

功率

Speed

(RPM)

转速

Airflow

(CFM)

风量

Static

Pressure

(mm-H2O)

静压

Niose

Level

(dB-A)

噪音

Weight

重量

MD2010D5H-S
Sleeve
5
4.5~5.5
0.20
1.0
18000
1.89
7.23
37.28
5.5
MD2010D5M-S
0.15
0.75
12000
1.27
3.93
27.13
5.5
MD2010D5L-S
0.10
0.5
9000
0.85
2.32
20.55
5.5
MD2010D1H-S

Sleeve

12
10.8~13.2
0.15
1.8
18000
1.89
7.23
37.23
5.5
MD2010D1M-S
0.10
1.2
12000
1.27
3.93
23.17
5.5
MD2010D1L-S
0.07
0.87
9000
0.85
2.32
20.55
5.5

风扇端子
